- Usable Transmission Range is 600nm to 16 micron
- Low dispersion
- Large variety of AR coating are available upon request.

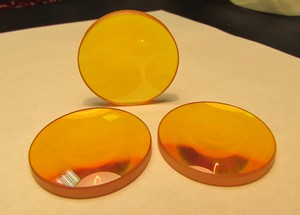

- Custom Plano-Convex ZnSe lenses
- Price breaks at 5 and 25pcs quantity
| CVD ZnSe plano-convex lens |
| Cat# |
Dia,in |
Dia,mm |
EFL, mm |
CT,mm |
R,mm |
ET,mm |
| ZnSe-px-12.7-25 |
0.5 |
12.7 |
25.4 |
2.6 |
35.97 |
2.0 |
| ZnSe-px-12.7-50 |
0.5 |
12.7 |
50.8 |
2.3 |
71.46 |
2.0 |
| ZnSe-px-25.4-50 |
1.0 |
25.4 |
50.8 |
3.1 |
71.46 |
2.0 |
| ZnSe-px-25.4-63 |
1.0 |
25.4 |
63.5 |
2.9 |
89.14 |
2.0 |
| ZnSe-px-25.4-76 |
1.0 |
25.4 |
75.0 |
2.8 |
106.15 |
2.0 |
| ZnSe-px-25.4-100 |
1.0 |
25.4 |
100 |
2.6 |
139.96 |
2.0 |
| ZnSe-px-25.4-150 |
1.0 |
25.4 |
150 |
2.4 |
209.91 |
2.0 |
| ZnSe-px-25.4-200 |
1.0 |
25.4 |
200 |
2.3 |
281.20 |
2.0 |
| ZnSe-px-25.4-254 |
1.0 |
25.4 |
254 |
2.2 |
356.51 |
2.0 |
| ZnSe-px-25.4-500 |
1.0 |
25.4 |
500 |
2.1 |
698.17 |
2.0 |
| ZnSe-px-38.1-50 |
1.5 |
38.1 |
50.8 |
4.6 |
71.46 |
2.0 |
| ZnSe-px-38.1-63 |
1.5 |
38.1 |
63.5 |
4.1 |
89.14 |
2.0 |
| ZnSe-px-38.1-76 |
1.5 |
38.1 |
75.0 |
3.7 |
106.15 |
2.0 |
| ZnSe-px-38.1-100 |
1.5 |
38.1 |
100 |
3.3 |
139.96 |
2.0 |
| ZnSe-px-38.1-150 |
1.5 |
38.1 |
150 |
2.9 |
209.91 |
2.0 |
| ZnSe-px-38.1-200 |
1.5 |
38.1 |
200 |
2.6 |
281.20 |
2.0 |
| ZnSe-px-38.1-254 |
1.5 |
38.1 |
254 |
2.5 |
356.15 |
2.0 |
| ZnSe-px-38.1-500 |
1.5 |
38.1 |
500 |
2.3 |
698.17 |
2.0 |
| ZnSe-px-38.1-1000 |
1.5 |
38.1 |
1000 |
2.1 |
1404.0 |
2.0 |
| ZnSe-px-38.1-2000 |
1.5 |
38.1 |
2000 |
2.1 |
2808.0 |
2.0 |
| ZnSe-px-50.8-76 |
2.0 |
50.8 |
76.2 |
5.6 |
106.15 |
2.5 |
| ZnSe-px-50.8-100 |
2.0 |
50.8 |
100 |
4.8 |
139.96 |
2.5 |
| ZnSe-px-50.8-150 |
2.0 |
50.8 |
150 |
4.0 |
209.9 |
2.5 |
| ZnSe-px-50.8-200 |
2.0 |
50.8 |
200 |
3.7 |
281.2 |
2.5 |
| ZnSe-px-50.8-254 |
2.0 |
50.8 |
254 |
3.4 |
356.5 |
2.5 |
| ZnSe-px-50.8-500 |
2.0 |
50.8 |
500 |
3.0 |
698.2 |
2.5 |
| ZnSe-px-50.8-1000 |
2.0 |
50.8 |
1000 |
2.7 |
1404.0 |
2.5 |
| ZnSe-px-50.8-2000 |
2.0 |
50.8 |
2000 |
2.6 |
2808.0 |
2.5 |
| ZnSe-px-76.2-150 |
3.0 |
76.2 |
150 |
6.5 |
209.9 |
3.0 |
| ZnSe-px-76.2-200 |
3.0 |
76.2 |
200 |
5.6 |
281.2 |
3.0 |
| ZnSe-px-76.2-254 |
3.0 |
76.2 |
254 |
5.1 |
356.5 |
3.0 |
| ZnSe-px-76.2-500 |
3.0 |
76.2 |
500 |
4.0 |
698.2 |
3.0 |
| ZnSe-px-76.2-1000 |
3.0 |
76.2 |
1000 |
3.5 |
1404.0 |
3.0 |
| ZnSe-px-76.2-2000 |
3.0 |
76.2 |
2000 |
3.3 |
2808.0 |
3.0 |
| Any other custom shape, size and focal length are available upon request. |
Custom ZnSe lenses are available in any size and configuration.
| Standard Specifications |
High Precision |
| Material |
ZnSe CVD. IR or laser grade. |
| Dimensions |
± 0.00/-0.10mm |
+0.00/-0.03mm |
| Thickness |
± 0.10mm |
±0.05mm |
| Focal length tolerance: |
+/-1% at 10.6microns |
+/-1% at 10.6microns |
| Surfaces |
60/40 |
40/20 |
| Edges |
Fine Ground |
| Surface irregularity |
≤5 Fringes |
0.2-0.5 Fringes |
| Centration |
3 Arc mins |
1 arc min |
Please do not hesitate to contact us for pricing for any custom size and coatings requirements.
Zinc Selenide is a chemically vapor deposited material commonly used in thermal imaging, FLIR, and medical systems. It has wide usage in high power CO2 laser systems because of its low absorption coefficient and high resistance to thermal shock. Zinc Selenide is a relatively soft material that scratches easily and it is not recommended for use in harsh environments (Knoop Hardness 120).
